Product Description

GEOCHEM ENGINEERING offers HDPE and PP pipe systems for drinking water, gas, sewerage and discharge under pressure.

Corrugated pipes and manholes HDPE SN4 / SN8 and PP SN8 / SN12 / SN16 for sewerage and rainwater collection Storm-water retention systems, Corrugated pipes for drainage systems, Segmented and injection molded fittings for corrugated pipes.

title icon

Types

Pressure Pipes







Corrugated Pipes







Drainage Pipes







title icon

Technical Details

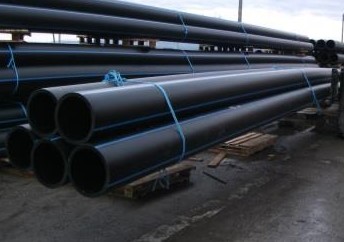

Pressure Pipes

Geochem’s  The products are HDPE PE100, PE80, and PE100-RC monolayer black pipes with coextruded lines, intended for pressure applications, made according to EN 12201-2:2013,

  • The products are designed for :
    Water transport and distribution’networks
    Sewerage
    Drainage
  • Our  pipes are made according EN 12201-2:2013 and are to be used under the following primary conditions :
    Operating temperature of 20oC as a reference temperature
    Buried in the ground
    Above ground applications with protective sheath

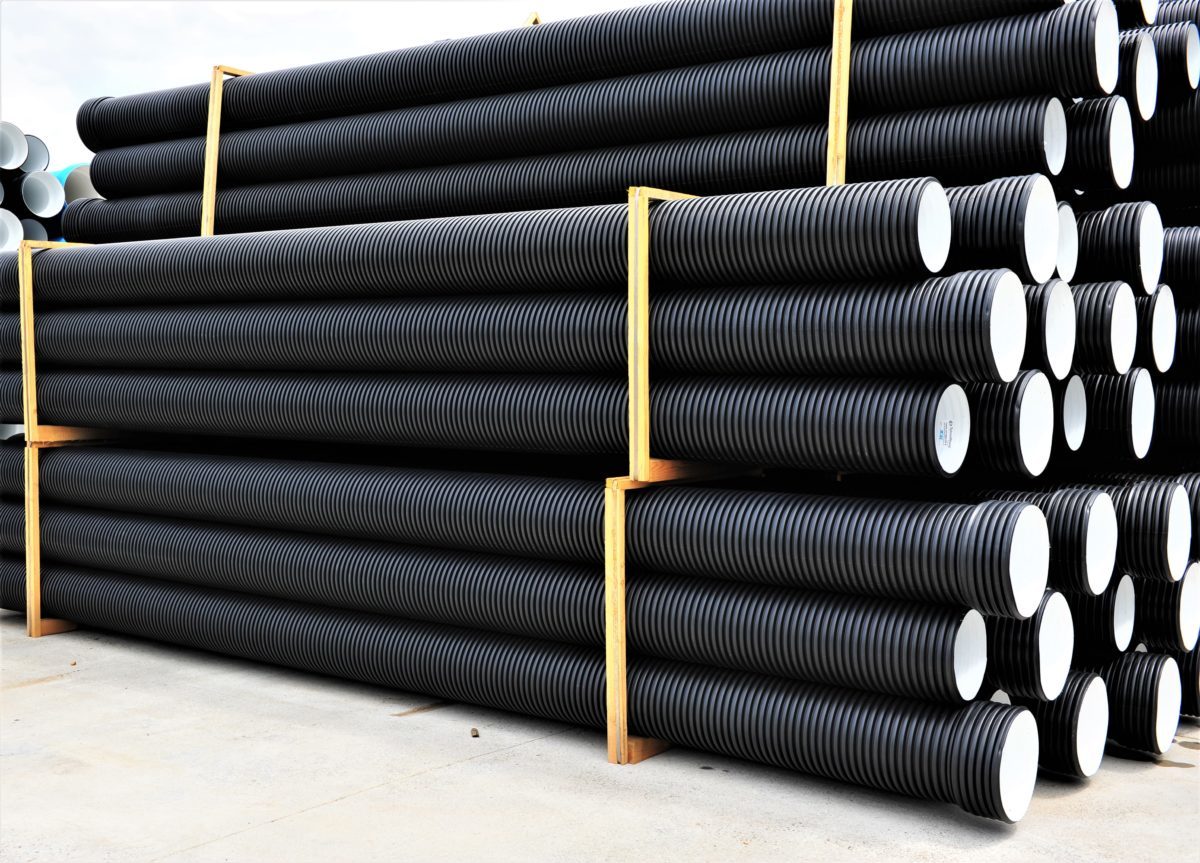

Corrugated Pipes

Our offered types are high density polyethylene corrugated pipes for sewerage networks and rainwater collecting systems designed for gravitational flow. The double wall corrugated pipes are made through continued co-extrusion, effectively welding the two walls of the pipe together during production.
The pipe system consists of injected HDPE socket and EPDM sealing rings, according to EN13476-3 SR Type B and is certified with Product Compliance Certificate issued by a third party accredited certification body.
The typical dimensions are OD and ID nominated 110÷1200 mm, and have SN4 (4 kN/m2) or SN8 (8kN/m2) ring stiffness determinated accordingly EN ISO 9969.

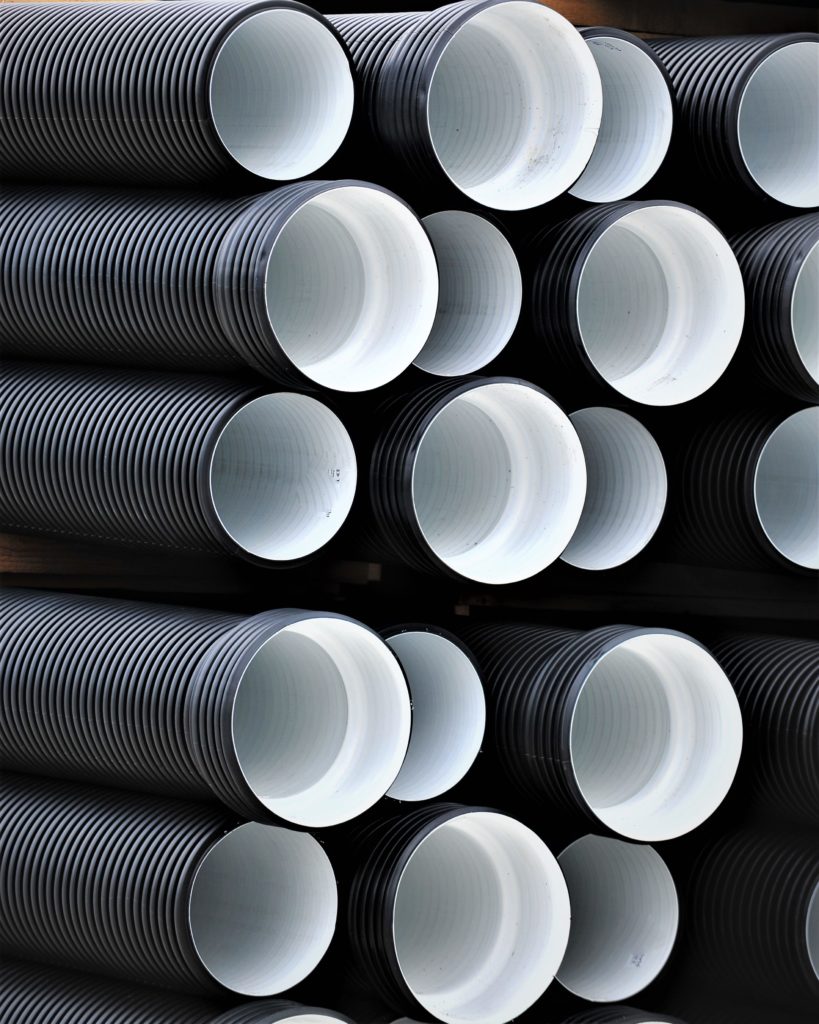

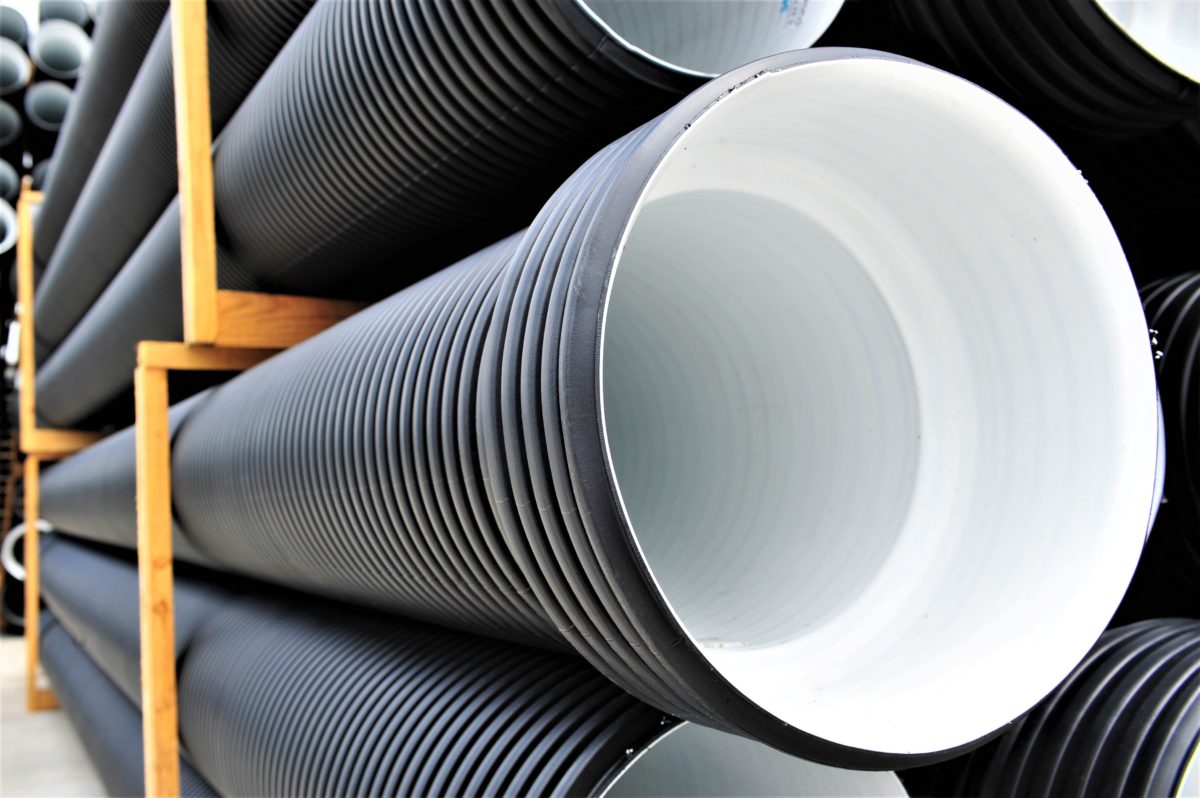

Drainage Pipes

Geochem’s  drainage corrugated pipes is made of high density polyethylene. The double wall made trough continued co-extrusion. The exterior wall is structured – corrugated while the inner wall is smooth black colored.

Our range starts from OD 63mm up to OD 200mm

  • Size:
    Coils: 50m with jointing fitting
    Coils: 25ml for DE200mm
  • ACCESSORIES:
    Jointing HDPE fittings, elastomeric seals and special pieces (tees, elbows, ramifications)
  • INSTALLATION: Buried, according EN 1610:2000.



title icon

Applications

Infrastructures
Infrastructures
Environmental
Environmental
Industry
Industry
Hydraulics
Hydraulics
Mining
Mining
Agriculture
Agriculture
